IDML Filter: the extraction of the hyperlink text source inner elements is not fully supported
Created by: Efrem Tewelde
It is possible for the HyperlinkTextSource story element to contain inner ones, most of which are aligned with the CharacterStyleRange internal elements.

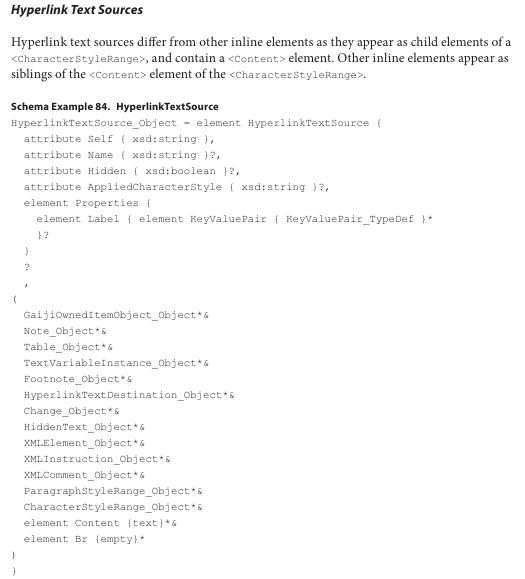

Below is the hyperlink text source description from the specification:

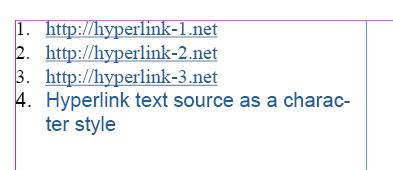

An example document with UI:
its related structure:
<ParagraphStyleRange AppliedParagraphStyle="ParagraphStyle/$ID/NormalParagraphStyle" LeftIndent="18" FirstLineIndent="-18" BulletsAndNumberingListType="NumberedList" NumberingContinue="false">
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/Hyperlink">
<HyperlinkTextSource Self="u105" Name="http://hyperlink-1.net 1" Hidden="false" AppliedCharacterStyle="n">
<Content>http://hyperlink-1.net</Content>
</HyperlinkTextSource>
</CharacterStyleRange>
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/$ID/[No character style]">
<Br />
</CharacterStyleRange>
</ParagraphStyleRange>
<ParagraphStyleRange AppliedParagraphStyle="ParagraphStyle/$ID/NormalParagraphStyle" LeftIndent="18" FirstLineIndent="-18" BulletsAndNumberingListType="NumberedList">
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/Hyperlink">
<HyperlinkTextSource Self="u108" Name="http://hyperlink-2.net 1" Hidden="false" AppliedCharacterStyle="n">
<Content>http://hyperlink-2.net</Content>
<Br />
</HyperlinkTextSource>
</CharacterStyleRange>
<HyperlinkTextSource Self="u109" Name="http://hyperlink-3.net 1" Hidden="false" AppliedCharacterStyle="n">
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/Hyperlink">
<Content>http://hyperlink-3.net</Content>
<Br />
</CharacterStyleRange>
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/Hyperlink" Underline="false">
<Properties>
<AppliedFont type="string">Arial</AppliedFont>
</Properties>
<Content>Hyperlink text source as a character style</Content>
</CharacterStyleRange>
<CharacterStyleRange AppliedCharacterStyle="CharacterStyle/Hyperlink">
<Br />
</CharacterStyleRange>
</HyperlinkTextSource>
</ParagraphStyleRange>and its extraction:
<file original="Stories/Story_ue7.xml" source-language="en" target-language="fr" datatype="xml">
<body>
<trans-unit id="P50B5830A-tu1" xml:space="preserve">
<source xml:lang="en"><g id="1"><g id="2">http://hyperlink-1.net</g></g></source>
<target xml:lang="fr"><g id="1"><g id="2">http://hyperlink-1.net</g></g></target>
</trans-unit>
<trans-unit id="P50B5830A-tu2" xml:space="preserve">
<source xml:lang="en"><g id="1"><g id="2">http://hyperlink-2.net<x id="3"/></g></g><g id="4"><g id="5">http://hyperlink-3.net<x id="6"/></g><g id="7">Hyperlink text source as a character style<x id="8"/></g></g></source>
<target xml:lang="fr"><g id="1"><g id="2">http://hyperlink-2.net<x id="3"/></g></g><g id="4"><g id="5">http://hyperlink-3.net<x id="6"/></g><g id="7">Hyperlink text source as a character style<x id="8"/></g></g></target>
</trans-unit>
</body>
</file>can be found attached.
All inner elements of hyperlink text sources are extracted as inline codes. So, the extraction has to be improved to reflect the aforementioned possibility (handling the Br tags as textual unit boundaries at least).
