Gitlab XSS through PlantUML proxy

HackerOne report #1466686 by solov9ev on 2022-02-01, assigned to @mhenriksen:

Report

Hi, Security Team!

I discovered a Gitlab XSS vulnerability through PlantUML proxy

Steps to reproduce

First, install PlantUML (sudo docker run -d --name plantuml -p 8080:8080 plantuml/plantuml-server:tomcat)

PlantUML Server Version 1202200

Next step install Gitlab (sudo docker run --detach --hostname gitlab.example.com --publish 443:443 --publish 80:80 --publish 22:22 --name gitlab gitlab/gitlab-ee:latest)

--------------------------------------------------------------------------------
 Ruby:         ruby 2.7.5p203 (2021-11-24 revision f69aeb8314) [x86_64-linux]
 GitLab:       14.7.0-ee (621e5984888) EE
 GitLab Shell: 13.22.2
 PostgreSQL:   12.7
--------------------------------------------------------------------------------

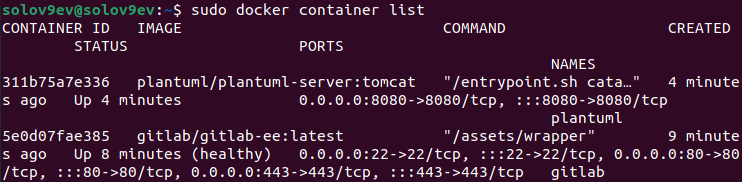

The result is two running containers: Gitlab, PlantUML

Add values to the file /etc/passwd on your local machine:

Let's check that everything works at the assigned addresses

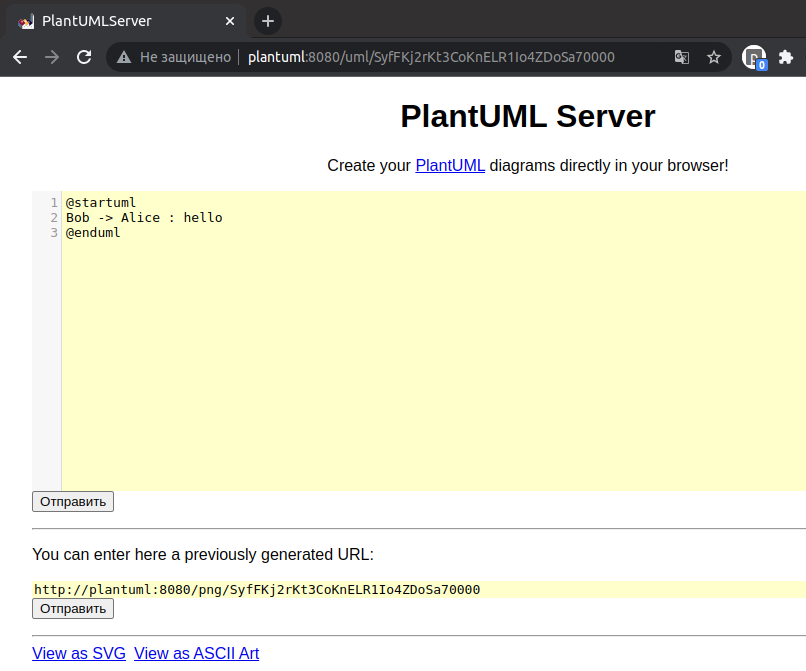

http://plantuml:8080/

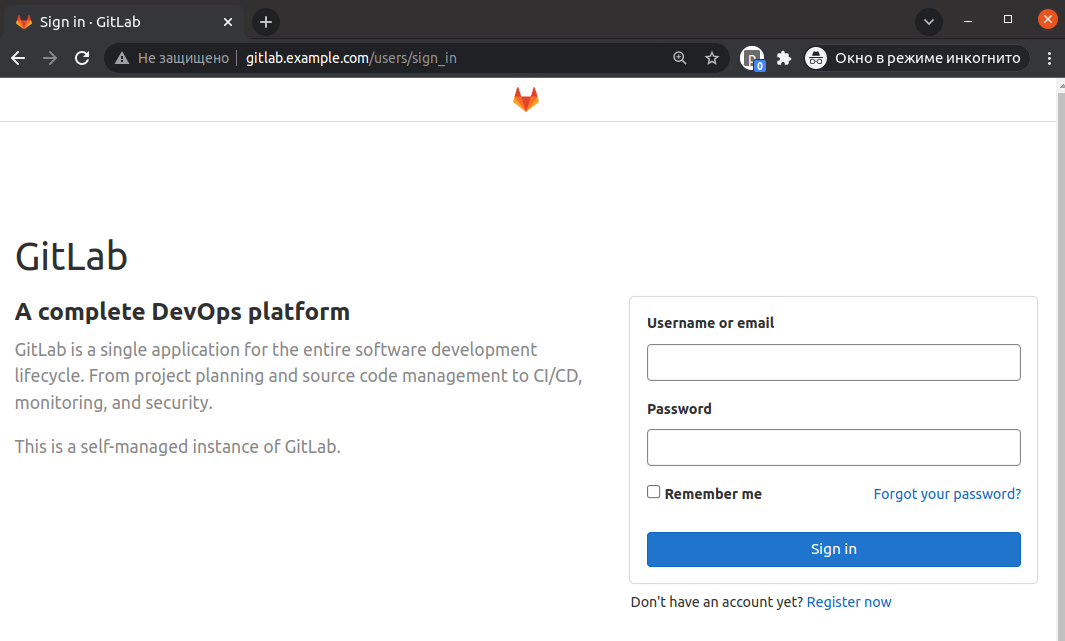

http://gitlab.example.com/

Now you need to go into the Gitlab docker container and configure proxying in nginx according to the Gitlab documentation (https://docs.gitlab.com/ee/administration/integration/plantuml.html). In our case, the Gitlab container has id 5e0d07fae385

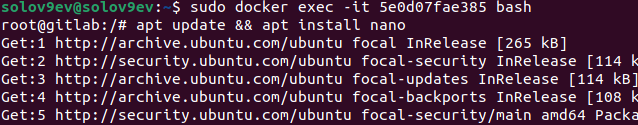

Install a program for editing files in the docker container: apt update && apt install nano

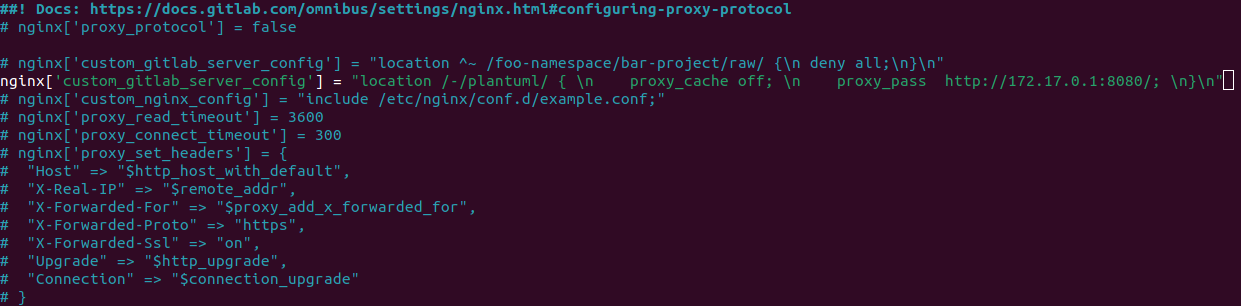

Now you need to edit the Nginx configuration in Gitlab docker container: nano /etc/gitlab/gitlab.rb

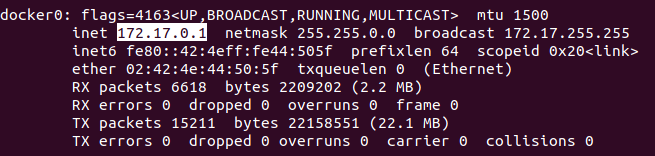

I specified the ip address 172.17.0.1 because it is the docker address that I found out by running the ifconfig command on my local machine

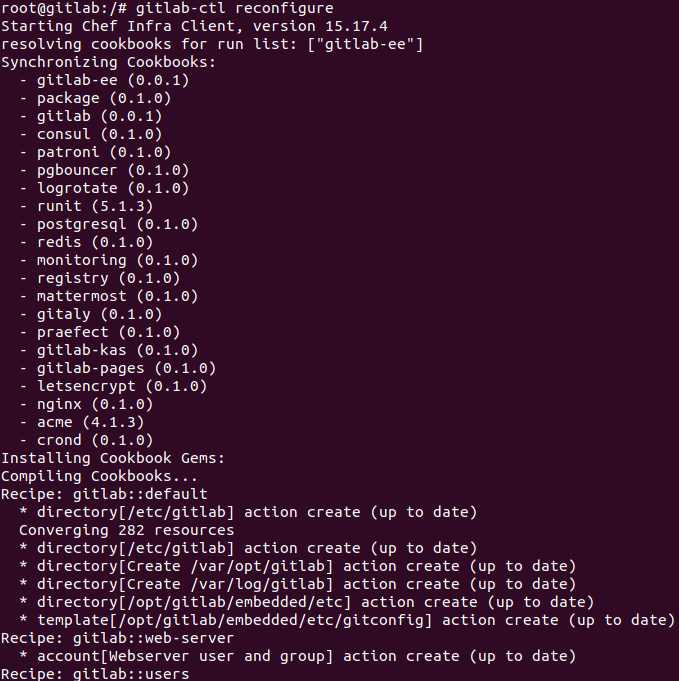

After making changes to the file /etc/gitlab/gitlab.rb, reconfigure the gitlab container: gitlab-ctl reconfigure

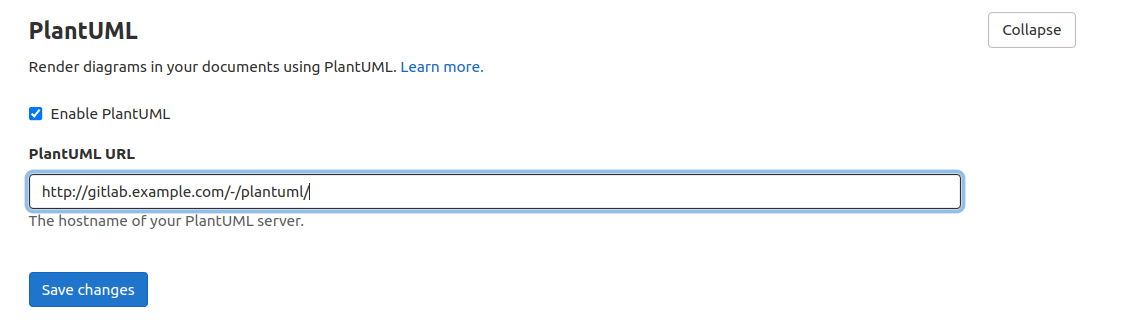

Now you need to configure proxying to the PlantUML in the settings of the Gitlab web system

On the local machine (http://192.168.0.10:1337/xss_svg.svg), I placed the following SVG exploit. It must contain the height and width. Although this exploit can be placed anywhere

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">

<svg version="1.1" width="200" height="200" baseProfile="full" xmlns="http://www.w3.org/2000/svg">
   <polygon id="triangle" points="0,0 0,50 50,0" fill="#009900" stroke="#004400"/>
   <script type="text/javascript">
      alert(document.domain);
   </script>
</svg>

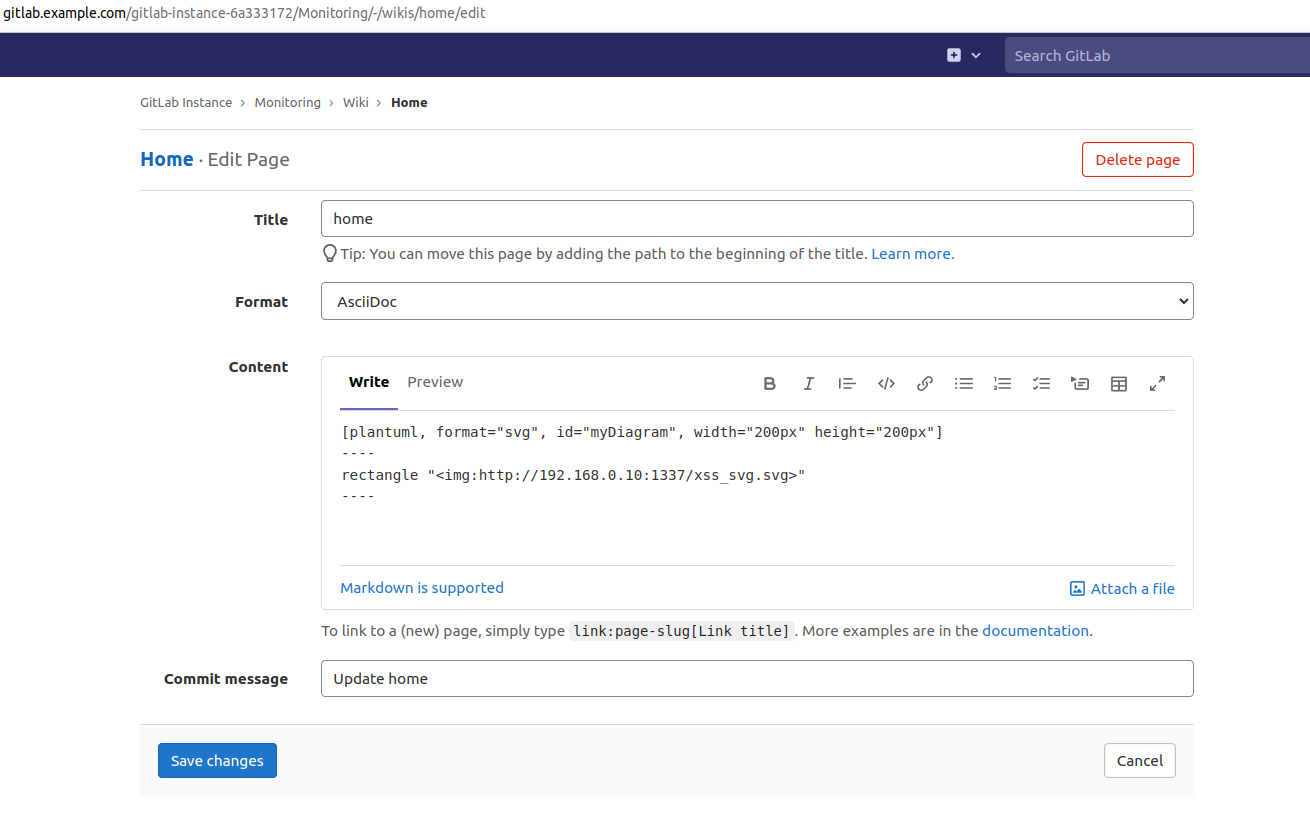

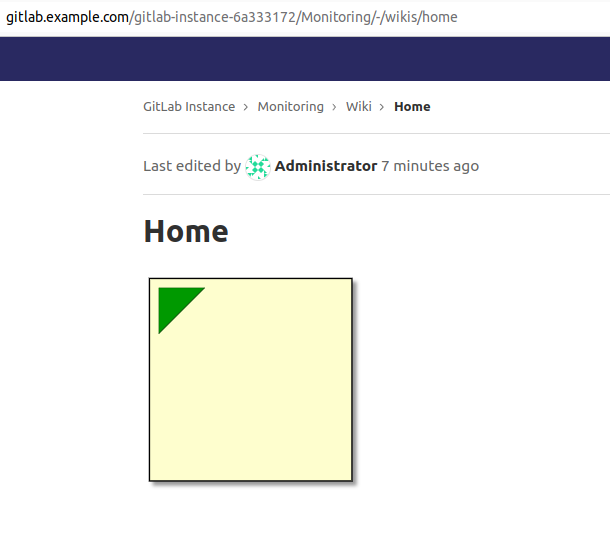

The user can then create a wiki page with the AsciiDoc type

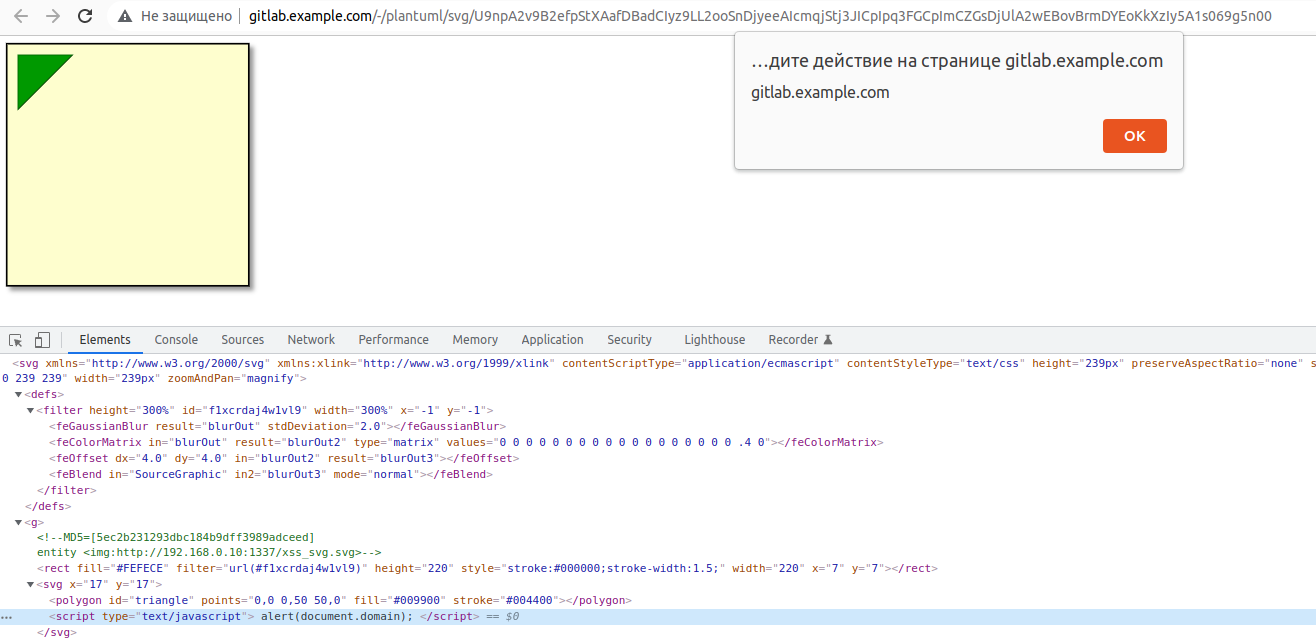

After clicking on the SVG, due to proxying, gitlab displays svg in the gitlab.example.com domain

I proved that this SVG works in the github domain and provided the POC in this report #1457495

Impact

With this vulnerability, an attacker can for example steal users cookies or redirect users on malicious website.
