Code coverage badge and analytics always empty
Summary
No matter what I do I cannot get the coverage badge to show the coverage
https://gitlab.com/timerocket/assistant/public/aws-sns/badges/master/coverage.svg
Here is my pipeline configuration
stages:
- test
- docker-build
- version-push
- deploy
- cleanup
variables:
# The prefix to add to commit messages that only include upgrades of versions
# Due to the limitations of the workflow expressions. You must also update the workflow rules below if you change this
# This text is matched with regular expression below. Regex characters such as `[` must be escaped!
# For more info on the problem see: https://stackoverflow.com/questions/2933474/escape-characters-contained-by-bash-variable-in-regex-pattern
BUMP_VERSION_MESSAGE: "[bump version]"
# When a new commit is pushed or merged into master, does that commit get automatically deployed to the development.1 environment
CD_TO_DEVEOPMENT_1_FROM_MASTER: "true"
# The prefix to add to each container registry image tag for images that are created for commits. Does not apply to registry tags created for git tags.
CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX: "commit-"
# How long container tag that are created for commits will survive. Container registry tags created for git tags will survive forever.
# Can be in format: `1d` `1h` `1month`
# See: https://docs.gitlab.com/ee/api/container_registry.html#delete-registry-repository-tags-in-bulk
CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_LIFETIME: "3month"
# Only run when there is [bump version] in the commit message and rev type is a tag or there is not [bump version] in the commit message
workflow:
rules:
- if: $CI_COMMIT_MESSAGE =~ /\[bump version\]/ && $CI_COMMIT_TAG
when: always
- if: $CI_COMMIT_MESSAGE =~ /\[bump version\]/ && $CI_COMMIT_BRANCH
when: never
- if: $CI_COMMIT_MESSAGE !~ /\[bump version\]/
when: always
.version-validate: &version-validate
- >
echo $CI_PROJECT_ID;
latest_tag_json=$(curl -X GET --header "Private-Token: $SHARED_CI_ACCESS_TOKEN" "https://gitlab.com/api/v4/projects/$CI_PROJECT_ID/repository/tags?per_page=1");
echo "$latest_tag_json";
latest_tag_length=$(echo "$latest_tag_json" | jq '. | length');
latest_tag_name=;
if (( $latest_tag_length > 0 )); then
latest_tag_name=$(echo "$latest_tag_json" | jq -r '.[0].name');
package_version=$(jq -r '.version' app/package.json);
if [[ "$package_version" != "$latest_tag_name" ]]; then
echo -e "\e[31mVersion does not match latest tag. Please change version in package.json to '$latest_tag_name'\e[39m";
exit 1;
fi;
fi;
.git-configure: &git-configure
- echo "$GIT_SSH_PK" | base64 -d > id_rsa
- chmod 400 id_rsa
- echo 'ssh -i ./id_rsa -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no $*' > ssh
- chmod +x ssh
- git config --global user.name "$GITLAB_USER_NAME"
- git config --global user.email "$GITLAB_USER_EMAIL"
- git remote set-url origin git@$CI_SERVER_HOST:$CI_PROJECT_PATH.git
test:
image: cryptexlabs/ts-node-ci:1.2.0
stage: test
allow_failure: false
except:
refs:
- tags
- schedules
variables:
ENV_NAME: ci
script:
- *version-validate
- cd app
- yarn install
- yarn lint
- yarn env-file-validate
- yarn test:ci
artifacts:
paths:
- app/reports/tests.xml
- app/coverage/cobertura-coverage.xml
reports:
junit: app/reports/tests.xml
cobertura: app/coverage/cobertura-coverage.xml
coverage: /Branches\s+:\s(\d+.?\d+)%/
.docker-variables: &docker-variables
DOCKER_TLS_CERTDIR: ""
DOCKER_DRIVER: overlay2
DOCKER_HOST: tcp://docker:2375
docker-build:
image: cryptexlabs/ts-node-ci:1.2.0
stage: docker-build
allow_failure: false
needs:
- test
services:
- docker:dind
variables:
<<: *docker-variables
except:
refs:
- tags
- schedules
script:
- docker build -f docker/Dockerfile --cache-from $CI_REGISTRY_IMAGE:latest . --tag $CI_REGISTRY_IMAGE:$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA
- docker login -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD" "$CI_REGISTRY"
# Don't push docker images for pull requests
- >
if [[ $CI_COMMIT_TAG ]] || [[ $CI_COMMIT_BRANCH ]]; then
docker push $CI_REGISTRY_IMAGE:$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA
fi
.version-push: &version-push
image: cryptexlabs/ts-node-ci:1.2.0
stage: version-push
needs:
- test
- docker-build
when: manual
allow_failure: false
services:
- docker:dind
only:
refs:
- master
except:
refs:
- schedules
script:
- *version-validate
- *git-configure
- git checkout master
- BASE_DIR=$PWD
- cd app
- yarn version --$INCREMENT_TYPE --no-git-tag-version --no-commit-hooks
- version=$(jq -r '.version' package.json)
- cd $BASE_DIR
- docker login -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD" "$CI_REGISTRY"
- docker pull $CI_REGISTRY_IMAGE:$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA
- docker tag $CI_REGISTRY_IMAGE:$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA $CI_REGISTRY_IMAGE:$version
- docker tag $CI_REGISTRY_IMAGE:$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA $CI_REGISTRY_IMAGE:latest
- yq w -i k8s/$CI_PROJECT_NAME/Chart.yaml appVersion "$version"
- yq w -i k8s/$CI_PROJECT_NAME/values.yaml nodejs.image.tag "$version"
- git add k8s/$CI_PROJECT_NAME/Chart.yaml k8s/$CI_PROJECT_NAME/values.yaml app/package.json
- git commit -m "$BUMP_VERSION_MESSAGE $version"
- git tag $version
- GIT_SSH='./ssh' git push origin $version
- GIT_SSH='./ssh' git push origin master
- docker push $CI_REGISTRY_IMAGE:$version
- docker push $CI_REGISTRY_IMAGE:latest
patch:
<<: *version-push
variables:
INCREMENT_TYPE: patch
<<: *docker-variables
minor:
<<: *version-push
variables:
INCREMENT_TYPE: minor
<<: *docker-variables
major:
<<: *version-push
variables:
INCREMENT_TYPE: major
<<: *docker-variables
.deploy-script: &deploy-script
- >
if [[ -z "$(kubectl get namespace $KUBE_NAMESPACE)" ]]; then
kubectl create namespace $KUBE_NAMESPACE;
fi;
- >
if [[ -z "$(kubectl get secret gitlab-registry --namespace $KUBE_NAMESPACE)" ]]; then
kubectl create secret docker-registry gitlab-registry \
--docker-server=https://registry.gitlab.com \
--docker-username=$CI_REGISTRY_USER \
--docker-password=$SHARED_CI_ACCESS_TOKEN \
--namespace $KUBE_NAMESPACE;
fi;
- helm dep up k8s/$CI_PROJECT_NAME
- >
helm upgrade $CI_PROJECT_NAME k8s/$CI_PROJECT_NAME
--install
--namespace $KUBE_NAMESPACE
--values k8s/$CI_PROJECT_NAME/values.yaml
--values k8s/$CI_PROJECT_NAME/$CI_ENVIRONMENT_NAME.values.yaml
--set nodejs.annotations.'app\.gitlab\.com/env'=$CI_ENVIRONMENT_SLUG
--set nodejs.annotations.'app\.gitlab\.com/app'=$CI_PROJECT_PATH_SLUG
--set nodejs.namespace=$KUBE_NAMESPACE
--set nodejs.image.tag=$APP_VERSION
.deploy: &deploy
image:
name: cryptexlabs/helm-yq:3.2.4
entrypoint: [""]
stage: deploy
allow_failure: false
.rev-deploy: &rev-deploy
<<: *deploy
script:
- yq w -i k8s/$CI_PROJECT_NAME/Chart.yaml appVersion "$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA"
- APP_VERSION=$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX$CI_COMMIT_SHORT_SHA
- *deploy-script
.tag-deploy: &tag-deploy
<<: *deploy
script:
- APP_VERSION=$CI_COMMIT_TAG
- *deploy-script
deploy-development-1-ref:
<<: *rev-deploy
rules:
- if: $CI_PIPELINE_SOURCE == "schedule"
when: never
- if: $CI_MERGE_REQUEST_ID
when: never
- if: $CI_COMMIT_TAG
when: never
- if: $CI_COMMIT_BRANCH == "master" && $CD_TO_DEVEOPMENT_1_FROM_MASTER == "true"
# Makes continuous deployment to dev environment from master
when: on_success
- if: $CI_COMMIT_MESSAGE =~ /\[ship it\]/ && $CI_COMMIT_BRANCH && $CI_COMMIT_BRANCH != "master"
- when: on_success
- if: $CI_COMMIT_BRANCH != "master" && $CI_COMMIT_BRANCH
when: manual
needs:
- test
- docker-build
environment:
name: development.1
deploy-development-1:
<<: *tag-deploy
# Makes continuous deployment to dev environment from all new tags
when: on_success
only:
refs:
- tags
except:
refs:
- schedules
environment:
name: development.1
deploy-production-1:
<<: *tag-deploy
when: manual
only:
refs:
- tags
except:
refs:
- schedules
environment:
name: production.1
cleanup-image-tags:
stage: cleanup
image: cryptexlabs/ts-node-ci:1.2.0
rules:
- if: $SCHEDULE_NAME == 'cleanup-image-tags' && $CI_PIPELINE_SOURCE == "schedule"
when: on_success
# Issues regarding "regex" in name_regex_delete https://gitlab.com/gitlab-org/gitlab/-/issues/27072#note_239340436
# Throttling of bulk delete API: https://gitlab.com/gitlab-org/gitlab/-/issues/32900
script:
- >
registries_json=$(curl -X GET --header "Private-Token: $SHARED_CI_ACCESS_TOKEN" "https://gitlab.com/api/v4/projects/$CI_PROJECT_ID/registry/repositories?per_page=1");
registries_length=$(echo "$registries_json" | jq '. | length');
if [[ $registries_length > 0 ]]; then
registry_id=$(echo "$registries_json" | jq -r '.[0].id');
curl -X DELETE \
--fail \
--header "Private-Token: $SHARED_CI_ACCESS_TOKEN" \
--data "name_regex_delete=^$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_PREFIX.*" \
--data "older_than=$CONTAINER_REGISTRY_IMAGE_TAG_FOR_COMMIT_LIFETIME" \
"https://gitlab.com/api/v4/projects/$CI_PROJECT_ID/registry/repositories/$registry_id/tags";
fi;Here is the badge:

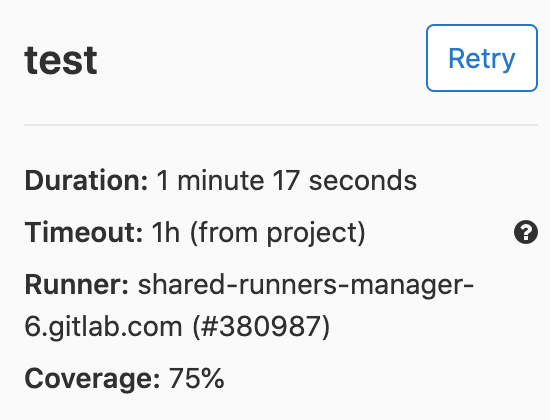

I can see that the coverage is correctly being captured in the job:

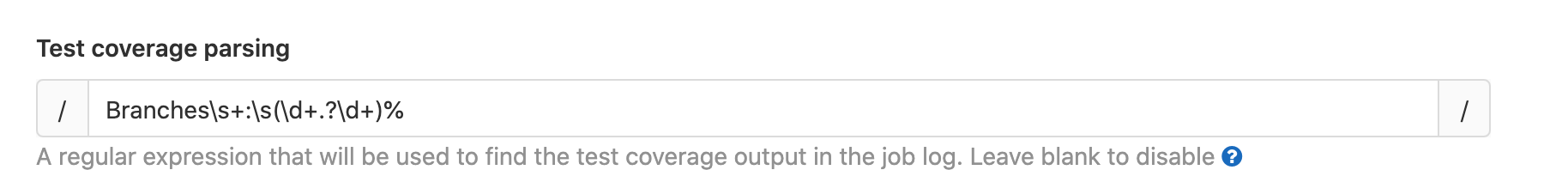

I can have the exact same regex in the coverage configuration:
I am running the pipeline on the master branch which you can see here: https://gitlab.com/timerocket/assistant/public/aws-sns/-/jobs/655788637
I have tried adding new commits to ensure the coverage gets capture.
I have also disabled colorized output.
Steps to reproduce
Use the above pipeline test step to generate a codecoverage output
Example Project
https://gitlab.com/timerocket/assistant/public/aws-sns
What is the current bug behavior?
No matter what the coverage badge and analytics always show up as unknown
What is the expected correct behavior?
I see the actual code coverage
Relevant logs and/or screenshots
Running with gitlab-runner 13.2.0-rc2 (45f2b4ec)
on docker-auto-scale ed2dce3a
Preparing the "docker+machine" executor
00:12
Using Docker executor with image cryptexlabs/ts-node-ci:1.2.0 ...
Pulling docker image cryptexlabs/ts-node-ci:1.2.0 ...
Using docker image sha256:fded63d2beb3061687857e18704cbc396ac3e525192c74e893e11cffce5ea928 for cryptexlabs/ts-node-ci:1.2.0 ...
Preparing environment
00:03
Running on runner-ed2dce3a-project-20146310-concurrent-0 via runner-ed2dce3a-srm-1595639223-69495c1c...
Getting source from Git repository
00:02
$ eval "$CI_PRE_CLONE_SCRIPT"
Fetching changes with git depth set to 50...
Initialized empty Git repository in /builds/timerocket/assistant/public/aws-sns/.git/
Created fresh repository.
Checking out 666788ec as master...
Skipping Git submodules setup
Executing "step_script" stage of the job script
00:55
$ echo $CI_PROJECT_ID; latest_tag_json=$(curl -X GET --header "Private-Token: $SHARED_CI_ACCESS_TOKEN" "https://gitlab.com/api/v4/projects/$CI_PROJECT_ID/repository/tags?per_page=1"); echo "$latest_tag_json"; latest_tag_length=$(echo "$latest_tag_json" | jq '. | length'); latest_tag_name=; if (( $latest_tag_length > 0 )); then # collapsed multi-line command
20146310
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 724 0 724 0 0 4022 0 --:--:-- --:--:-- --:--:-- 4000
[{"name":"0.3.1","message":"","target":"2a5004440e80442c4901cd8df39c2be1a4f7867b","commit":{"id":"2a5004440e80442c4901cd8df39c2be1a4f7867b","short_id":"2a500444","created_at":"2020-07-25T01:02:53.000+00:00","parent_ids":["0a38ff9810da68415532dbf9e062a3803dce64cd"],"title":"[bump version] 0.3.1","message":"[bump version] 0.3.1\n","author_name":"Josh Woodcock","author_email":"ltdwoodcock@gmail.com","authored_date":"2020-07-25T01:02:53.000+00:00","committer_name":"Josh Woodcock","committer_email":"ltdwoodcock@gmail.com","committed_date":"2020-07-25T01:02:53.000+00:00","web_url":"https://gitlab.com/timerocket/assistant/public/aws-sns/-/commit/2a5004440e80442c4901cd8df39c2be1a4f7867b"},"release":null,"protected":false}]
/bin/sh: eval: line 102: 1: not found
$ cd app
$ yarn install
yarn install v1.22.4
[1/4] Resolving packages...
[2/4] Fetching packages...
warning Pattern ["@timerocket/data-model@https://gitlab.com/timerocket/assistant/public/typescript/data-model.git"] is trying to unpack in the same destination "/usr/local/share/.cache/yarn/v6/npm-@timerocket-data-model-0.1.0-c3b15789412c0d96639f28770aed78b98d6c0131/node_modules/@timerocket/data-model" as pattern ["@timerocket/data-model@https://gitlab.com/timerocket/assistant/public/data-model.git"]. This could result in non-deterministic behavior, skipping.
info fsevents@2.1.3: The platform "linux" is incompatible with this module.
info "fsevents@2.1.3" is an optional dependency and failed compatibility check. Excluding it from installation.
[3/4] Linking dependencies...
[4/4] Building fresh packages...
Done in 35.90s.
$ yarn lint
yarn run v1.22.4
$ tslint -p tsconfig.json -c tslint.json
Done in 4.69s.
$ yarn env-file-validate
yarn run v1.22.4
$ env-file-validate
Done in 0.22s.
$ yarn test:ci
yarn run v1.22.4
$ JEST_JUNIT_OUTPUT_NAME=reports/tests.xml jest --ci --coverage --no-colors --reporters=default --reporters=jest-junit --coverageReporters=cobertura --coverageReporters=json-summary --coverageReporters=text --coverageReporters=text-summary
PASS src/app.controller.spec.ts (9.74 s)
AppController
notification
type: Notification
✓ should send message to kafka service (5 ms)
✓ should return an ok response (4 ms)
type: SubscriptionConfirmation
✓ should confirm the subscription (2 ms)
✓ should return an ok response (2 ms)
---------------------------------------|---------|----------|---------|---------|-------------------
File | % Stmts | % Branch | % Funcs | % Lines | Uncovered Line #s
---------------------------------------|---------|----------|---------|---------|-------------------
All files | 85.83 | 75 | 80 | 84.11 |
src | 88 | 66.67 | 100 | 86.36 |
app.controller.ts | 82.61 | 50 | 100 | 80 | 55-57,66
app.service.ts | 91.67 | 75 | 100 | 90.48 | 40-41
config.ts | 100 | 100 | 100 | 100 |
src/locale | 100 | 100 | 100 | 100 |
enum.ts | 100 | 100 | 100 | 100 |
locales.ts | 100 | 100 | 100 | 100 |
src/notification | 93.62 | 75 | 87.5 | 92.86 |
notification-handler.factory.ts | 91.67 | 50 | 100 | 90 | 20
notification.handler.ts | 100 | 100 | 100 | 100 |
pinpoint-message.ts | 100 | 100 | 100 | 100 |
subscription-confirmation.handler.ts | 85.71 | 100 | 66.67 | 84.62 | 18-19
src/service | 42.86 | 100 | 0 | 33.33 |
kafka.service.ts | 42.86 | 100 | 0 | 33.33 | 11-35
---------------------------------------|---------|----------|---------|---------|-------------------
=============================== Coverage summary ===============================
Statements : 85.83% ( 103/120 )
Branches : 75% ( 9/12 )
Functions : 80% ( 16/20 )
Lines : 84.11% ( 90/107 )
================================================================================
Test Suites: 1 passed, 1 total
Tests: 4 passed, 4 total
Snapshots: 0 total
Time: 9.94 s
Ran all test suites.
Done in 10.85s.
Uploading artifacts for successful job
00:04
Uploading artifacts...
app/reports/tests.xml: found 1 matching files and directories
app/coverage/cobertura-coverage.xml: found 1 matching files and directories
Uploading artifacts as "archive" to coordinator... ok id=655788637 responseStatus=201 Created token=CUPgAiYJ
Uploading artifacts...
app/reports/tests.xml: found 1 matching files and directories
Uploading artifacts as "junit" to coordinator... ok id=655788637 responseStatus=201 Created token=CUPgAiYJ
Uploading artifacts...
app/coverage/cobertura-coverage.xml: found 1 matching files and directories
Uploading artifacts as "cobertura" to coordinator... ok id=655788637 responseStatus=201 Created token=CUPgAiYJ
Job succeeded
Output of checks
This bug happens on GitLab.com
Possible fixes
No idea
